composable_kernel/example/ck_tile/01_fmha

fused multi-head attention

This folder contains example for fmha(fused multi-head attention) using ck_tile tile-programming implementation. It is a good example to demonstrate the usage of tile-programming API, as well as illustrate the new approach to construct a kernel template and instantiate it(them) while keeping compile time fast.

build

# 1. In the root of composable_kernel project, create the build directory.
[~/composable_kernel] mkdir build && cd build
# 2. In the build directory, run the CMake wrapper script to generate the build system files. Replace <arch> with the gfx architectures string.
[~/composable_kernel/build] ../script/cmake-ck-dev.sh .. <arch> -G Ninja
# 3. In the build directory, run the build system recipe.
[~/composable_kernel/build] ninja tile_example_fmha_fwd

Running the build recipe will produce the executable tile_example_fmha_fwd.

The executables reside in bin subdirectory of the build directory.

This example provides recipes for tile_example_fmha_fwd, tile_example_fmha_bwd, tile_example_fmha_fwd_v3.

Note

cmake-ck-dev.sh is a CMake wrapper.

The first argument is the path to composable_kernel sources.

The second argument is the gfx architectures string (e.g. "gfx950" or "gfx90a;gfx942").

The remaining arguments are optional and are passed through to CMake. E.g. -G Ninja specifies ninja as the build system.

kernel

The kernel template is fmha_fwd_kernel.hpp, this is the grid-wise op in old ck_tile's terminology. We put it here purposely, to demonstrate one can construct a kernel by using various internal component from ck_tile. We may still have an implementation under ck_tile's include path (in the future) for the kernel template.

There are 2 template parameters for this kernel template.

• FmhaPipeline is one of the block_tile_pipeline(under include/ck_tile/tile_program/block_tile_pipeline) which is a performance critical component. Indeed, we did a lot of optimization and trials to optimize the pipeline and may still workout more performance pipeline and update into that folder. People only need to replace this pipeline type and would be able to enjoy the benefit of different performant implementations (stay tuned for updated pipeline(s)).
• EpiloguePipeline will modify and store out the result in the last phase. People usually will do lot of post-fusion at this stage, so we also abstract this concept. Currently we didn't do much thing at the epilogue stage but leave the room for future possible support.

codegen

To speed up compile time, we instantiate the kernels into separate file. In this way we can benefit from parallel building from CMake/Make system. This is achieved by generate.py script. Besides, you can look into this script to learn how to instantiate a kernel instance step by step, which is described in FMHA_FWD_KERNEL_BODY variable.

executable

tile_example_fmha_fwd is the example executable, implemented in fmha_fwd.cpp. You can type ./bin/tile_example_fmha_fwd -? to list all the arguments. Below is an example of the output (may subject to change)

args:
          -v    weather do CPU validation or not (default:1)
       -mode    kernel mode. 0:batch, 1:group (default:0)
          -b    batch size (default:2)
          -h    num of head, for q (default:8)
        -h_k    num of head, for k/v, -1 means equal to h (default:-1)
                if not equal to h, then this is GQA/MQA case
          -s    seqlen_q. if group-mode, means the average value of seqlen_q (default:3328)
                total_seqlen_q = seqlen_q * batch, and seqlen_q per batch may vary
                also with "-s=s0,s1,s2..." comma seperated int to set per batch seqlen(group-mode)
        -s_k    seqlen_k (including new key/value), -1 means equal to s (default:-1)
                also with "-s_k=s0,s1,s2..." comma-separated ints to set seqlen per batch (group mode)
     -s_qpad    seqlen_q stride between 2 batches (group-mode optional) (default:-1)
                Provide positive strides per-batch to simulate physical padding on Q
     -s_kpad    seqlen_k stride between 2 batches, currently used in group-mode only  (default:-1)
                for kv-cache case, each batch [1,s,h,d]/[1,h,s,d] can have a stride
                along seqlen, instead of packed, same as xformer kv_padding,
                must be greater than or equal to s_k
          -d    head dim for q, k (default:128)
        -d_v    head dim for v, -1 means equal to d (default:-1)
    -scale_s    scale factor of S. 0 means equal to 1/sqrt(hdim). (default:0)
     -qscale    n or 0, no scaling (default:n)
                1: per-tensor quantization.
      -iperm    permute input (default:1)
                if true, will be b*h*s*d, else b*s*h*d
      -operm    permute output (default:1)
       -bias    n or 0, no bias (default:n)
                e(lementwise) or 1, elementwise bias with 1*1*s*s. e:1, 1*h*s*s. e:2, b*h*s*s
                a(libi) or 2, alibi with 1*h. a:1, b*h
       -prec    data type. fp16/bf16/fp8/bf8 (default:fp16)
       -mask    0: no mask, 1: top-left(same as 't'), 2:bottom-right(same as 'b') (default:0)
                't', top-left causal mask, 'b', bottom-r causal mask
                't:l,r', top-left sliding window attn(swa) with FA style left right size
                'b:l,r', bottom-r sliding window attn(swa) with FA style left right size
                'xt:window_size', xformer style masking from top-left, window_size negative is causal, positive is swa
                'xb:window_size', xformer style masking from bottom-r, window_size negative is causal, positive is swa
                'g:y,x', generic attention mask coordinate with y/x size (only debug purpose for now)
    -vlayout    r for row-major(seqlen*hdim), c for col-major(hdim*seqlen) (default:r)
        -lse    0 not store lse, 1 store lse (default:0)
      -kname    if set to 1 will print kernel name (default:0)
       -init    init method. ui, uniform random int, ni, normalized random int (default:uf)
                uf, uniform random float, nf, normalized random float, tf, trig float, uf:q, quantization
       -seed    random seed used for initializing input tensors. 0 for non-deterministic seed (default:11939)
  -drop_seed    seed for random number generator (default:1)
-drop_offset    offset for random number generator (default:0)
 -drop_prefs    seed and offset values are present on GPU; 0 - host, 1 - device/GPU (default:0)
 -num_splits    number of splits for key/value. 0 to determine actual number by heuristic (default:1)
     -warmup    number of iterations before benchmark the kernel (default:5)
     -repeat    number of iterations to benchmark the kernel (default:20)
       -json    0: No Json, 1: Dump Results in Json format (default:0)
   -jsonfile    json file name to dump results (default:fmha_fwd.json)
 -q_eff_lens    Batch-mode only: per-batch effective seqlen for Q (exclude PAD) (default:"")
                Comma-separated list of length 'b'. If empty, no override
-kv_eff_lens    Batch-mode only: per-batch effective seqlen for KV (exclude PAD) (default:"")
                Comma-separated list of length 'b'. If empty, no override

Example 1: ./bin/tile_example_fmha_fwd -b=1 -h=16 -s=16384 -d=128 will run a fmha case with batch=1, nhead=16, sequence length=16384, hdim=128, fp16 case. Example 2: ./bin/tile_example_fmha_fwd -b=1 -h=8 -s=16384 -d=64 -drop_prefs=1 -drop_seed=10 -drop_offset=1234 will run a fmha case with batch=1, nhead=8, sequence length=16384, hdim=64, drop_seed=0 (in GPU memory), drop_offset=1234 (in GPU memory) fp16 case

Padding Examples

Example 3 (Group mode with padding): ./bin/tile_example_fmha_fwd -mode=1 -b=2 -h=8 -s=1024,2048 -s_k=1024,2048 -s_qpad=1536,3072 -s_kpad=1536,3072 -d=128 will run group mode with 2 batches having different sequence lengths (1024, 2048) but physically padded to (1536, 3072) respectively.

Example 4 (Batch mode with effective lengths): ./bin/tile_example_fmha_fwd -mode=0 -b=2 -h=8 -s=2048 -s_k=2048 -d=128 -q_eff_lens=1024,1536 -kv_eff_lens=1024,1536 will run batch mode where all batches use 2048 as physical sequence length but have effective lengths of (1024, 1536) for Q and KV respectively.

support features

Currently we are still in rapid development stage, so more features/optimizations will be coming soon.

hdim

Currently we support 32/64/128/256 hdim for fp16/bf16, within which 64/128 is better optimized. hdim should be multiple of 8, while seqlen_s can be arbitrary. For hdim be arbitrary number, it can be support through padding kernel of qr pipeline (we didn't generate this in generate.py by default)

group/batch mode

Currently we support both batch mode and group mode (or varlen, in FA's term), by setting -mode = 0 or 1. In group mode different kind of attention mask is also supported(see below)

MQA/GQA

By setting -h(nhead for q) and -h_k(nhead for k/v) with different number, you can achieve MQA/GQA. Please pay attention that h % h_K == 0 when you set different numbers.

input/output permute, and b*s*3*h*d

If you look at the kernel argument inside fmha_fwd_kernel.hpp, we support providing arbitrary stride for seqlen(stride_q/k/v), nhead, batch of q/k/v matrix, hence it is very flexible to support b*h*s*d or b*s*h*d input/output permute. The -iperm=0/1, -operm=0/1 is a convenient way to achieve this through the executable. We didn't provide a command-line arg to test b*s*3*h*d layout which is by default used by torch/FA, but it's trivial to achieve this if one set the proper stride_q/k/v value as 3*h*d.

attention bias

Attention bias is supported with the layout of 1*1*s*s(similiar to input/output, different layout can be supported by changing the stride value for bias, or even extend to b*h*s*s) and bias value in float number.

alibi

alibi is supported

lse

For training kernels, "log sum exp" need to store out in forward and used in backward. We support this by setting -lse=1

vlayout

We support v matrix in both row-major(seqlen*hdim) and col-major(hdim*seqlen). Since the accumulate(reduce) dimension for V is along seqlen, for current AMD's mfma layout which expect each thread to have contiguous register holding pixels along reduce dimension, it's easier to support col-major V layout. However, the performance of col-major is not necessarily faster than row-major, there are many factors that may affect the overall performance. We still provide the -vlayout=r/c here to switch/test between different layouts.

attention mask

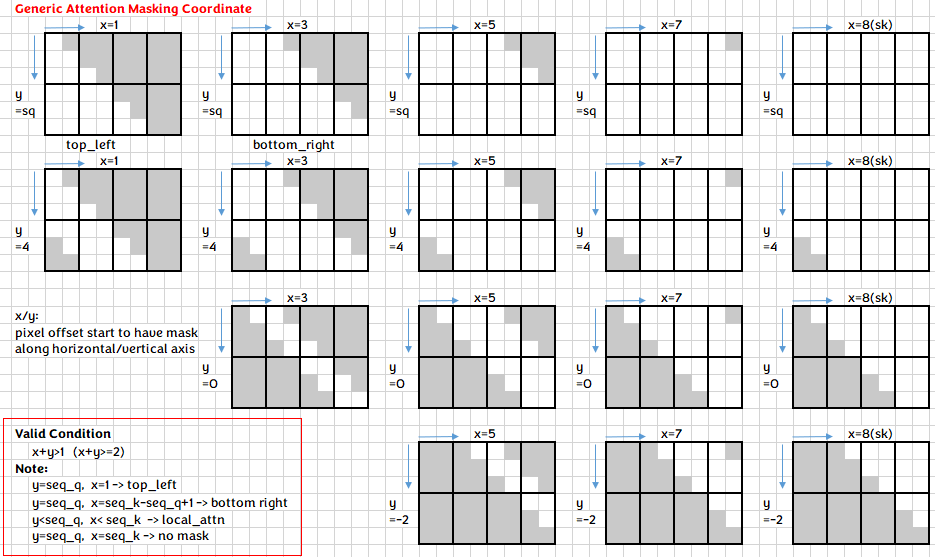

we support causal mask and sliding window attention(swa) mask in both batch and group mode, either from top-left or bottom-right. Underneath, we unify the mask expression into generic attention mask coordinate, providing an uniformed approach for each batch to locate the corresponding pixel need to be masked out.

Since FA/xformer style with window_size_left/right is more popular, we accept window_size as parameter and convert that internally to our generic coordinate(this coordinate can express more cases). Below shows some example of how to achieve different kind of mask through cmdline.

mask case	cmdline	FA style	xformer style
no mask	-mask=0(default)
causal mask from top-left	-mask=1 or -mask=t	-mask=t:-1,0	-mask=xt:-1
causal mask from bottom-right	-mask=2 or -mask=b	-mask=b:-1,0	-mask=xb:-1
swa from top-left		-mask=t:3,5	-mask=xt:4
swa from bottom-right		-mask=b:10,11	-mask=xb:16

Note FA use bottom-right by default to express swa case, here we require you explicitly specify top-left/bottom-right.

dropout

TBD

sequence padding and variable length support

We support sequence padding and variable-length processing in both batch and group modes fmha forward to handle real-world scenarios where sequences have different lengths.

Group Mode Padding: Use -s_qpad and -s_kpad to specify physical stride between batches, enabling padded layouts. Each batch can have different logical sequence lengths (-s, -s_k) but use larger physical strides for memory alignment.

Batch Mode Variable Length: Use -q_eff_lens and -kv_eff_lens to specify effective sequence lengths per batch. All batches share the same physical sequence length, but the kernel processes only the effective portions. This enables efficient variable-length attention without memory waste.

Both approaches optimize memory access patterns while supporting flexible sequence length requirements commonly found in transformer inference scenarios.

FP8 experimental support

As described in this blog, we have an experimental support for fp8 fmha kernels, you can evaluate the performance by setting the arg -prec=fp8 to the tile_example_fmha_fwd, on a gfx942 machine and ROCm 6.0+.

Currently we only support -vlayout=r( seqlen*hdim for V matrix) for fp8 and fp8bf16 now. Full feature support will come later.
