MoE-SmoothQuant with CK Tile

This example demonstrates MoE-SmoothQuant, a fused quantization operation for Mixture-of-Experts (MoE) models, using the CK Tile programming model. Unlike standard SmoothQuant, the input scale is expert-dependent, and the operation is fused with top-k expert selection. Specifically, it quantizes the top-k experts' outputs for each token using their respective expert scales. The input scale is from different expert [expert, hidden], and we need reuse the topk-id from previous topk-softmax and select the corresponding expert from current topk, and expand the output/per-token-scale by topk.

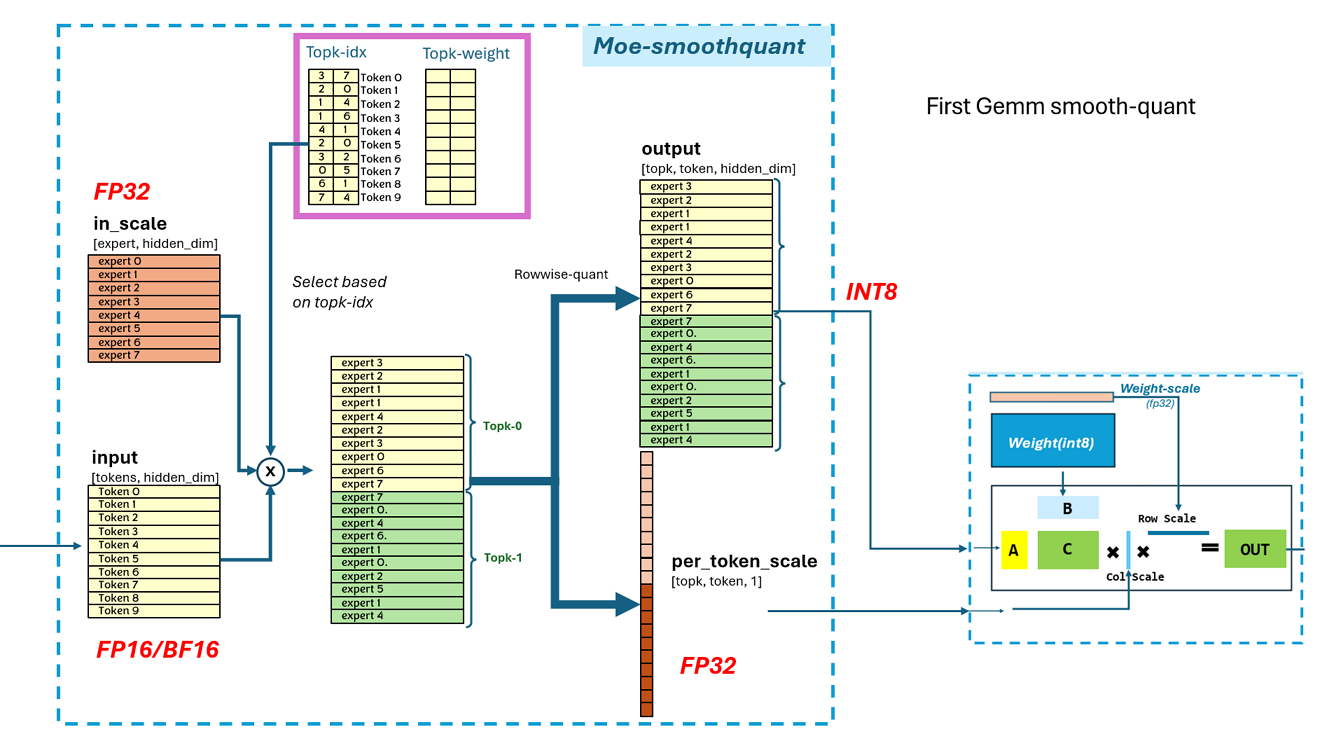

This diagram depicts moe-smoothquant using ck_tile tile-programming implementation.

---

Algorithm and Math

Given:

• Input: X of shape [\text{tokens}, \text{topk}, \text{hidden}]
• Expert scales: S of shape [\text{experts}, \text{hidden}]
• TopK indices: I of shape [\text{tokens}, \text{topk}]

Steps:

1. For each token t and its k selected experts:
   • Select scale S_{I_{t,k}, :} for the $k$-th expert.
   • Scale: Y_{t,k,j} = X_{t,k,j} \cdot S_{I_{t,k}, j}
2. Rowwise Dynamic Quantization (per token-expert pair):
   • s_{t,k} = \max_j |Y_{t,k,j}| / 127
   • Q_{t,k,j} = \text{round}(Y_{t,k,j} / s_{t,k}), Q_{t,k,j} \in \text{int8}

Output:

• Quantized tensor Q (int8)
• Per-token-expert scale s (fp32)

---

Tile Programming Model

• Tiles: Each thread block processes a tile (block of tokens, experts, or hidden units).
• Tile Engine: Loads input, selects expert scales via top-k indices, applies scaling and quantization, and writes results.
• Pipeline: Modular, can be extended for further fusion.

---

Build & Run

mkdir build && cd build
sh ../script/cmake-ck-dev.sh ../ <arch>
make tile_example_moe_smoothquant -j`nproc`
./bin/tile_example_moe_smoothquant -?

---

Source Structure

• Kernel: moe_smoothquant.hpp (tile-programming kernel template)
• Executable: moe_smoothquant.cpp
• Build: CMakeLists.txt, instances/, misc/, script/

---

Technical Notes

• Expert-dependent scaling: Each token's top-k experts use their own per-hidden-unit scale, requiring indirect indexing and efficient memory access.
• Fused with top-k: The kernel uses top-k indices from gating to select the correct expert scale for each token.
• Rowwise quantization: Each token-expert pair is quantized independently for maximum accuracy.

---

Related CK Tile Examples

• 09_topk_softmax: TopK-Softmax for MoE gating
• 13_moe_sorting: MoE sorting for expert dispatch
• 12_smoothquant: Standard SmoothQuant

For distribution, see include/ck_tile/tile_program/tile_distribution/.

---

Back to CK Tile Examples

example

args:
          -t    tokens dimension (default:3328)
          -h    hidden_size dimension (default:4096)
          -e    experts (default:32)
          -k    topk (default:5)
     -stride    stride per row, if -1 then equal to hidden_size (default:-1)
          -v    cpu validation or not (default:1)
      -kname    print kernel name or not (default:1)
     -prec_i    input precision, fp16/bf16 (default:fp16)
     -prec_o    precision, int8/fp8 (default:int8)
     -warmup    cold iter (default:5)
     -repeat    hot iter (default:20)
       -json    0: No Json, 1: Dump Results in Json format (default:0)
   -jsonfile    json file name to dump results (default:moe_smoothquant.json)
