Layernorm2D forward
This folder contains example for Layernorm2D forward using ck_tile tile-programming implementation.
Implementation and feature support
welford online algorithm
We use welfold algorithm to update mean/variance block by block. For N <=4096 case we can compute mean/var/normalization within one loop, we call it one-pass. For large N case, it is hard to keep mean/var inside register/LDS and then computation normalization, so we need to load input twice, first time to compute mean/var block-by-block, then load input another time to compute the normalization. We call it two-pass.
mean/variance save
In training case the mean/variance need to store out (TBD, not supported yet)
prenorm/postnorm
since prenorm/postnorm is quite common in LLM blocks, this example boosts this feature by kernel fusion. Note that prenorm/postnorm always need to do elementwise-add a shortcut before the actual layernorm computation, and optionally store out the result to global. You can use -fadd=1 to test pre-add+store, or -fadd=2 to test pre-add without store out (not codegen by default).
smooth-quant/dynamic-quant

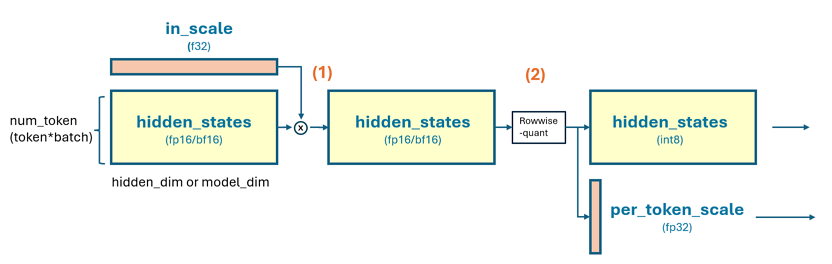

we support smooth/dynamic quantization for int8 output, by setting -fquant=1 and -prec_o=int8. In this case the output will doing a rowwise dynamic quantization like below. Note that smooth-quant require input a (1*N) size per-channel scale(in fp32 in our example, though this is customizable), then elememt-wise multiply the tensor for each row, then compute the rowwise dynamic quant. if set -fquant=2 will have the input per-channel scale stage, only the dynamic quant. This case is supported in our kernel but by default not generated (TBD: add some filter in generate.py support on-demand codegen)
# assume output int8, hidden_states is [m, n] shape and in fp16/bf16
# [m, 1]
per_token_amax, _ = torch.max(
input=torch.abs(hidden_states),
dim=-1,
keepdim=True
)
per_token_scale = per_token_amax.to(dtype=torch.float32) / 127.0
# quant hidden_states
hidden_states = (hidden_states / per_token_scale).to(dtype=torch.int8)
return hidden_states, per_token_scale
# hidden_states now is int8 will feed to next layer as intput
# per_token_scale will be used as dequant factor later layer
build
# in the root of ck_tile
mkdir build && cd build
sh ../script/cmake-ck-dev.sh ../ <arch> # you can replace this <arch> to gfx90a, gfx942...
make tile_example_layernorm2d_fwd -j
This will result in an executable build/bin/tile_example_layernorm2d_fwd
example
args:
-m m dimension (default:3328)
-n n dimension (default:4096)
-stride stride per row, if -1 then equal to n (default:-1)
-e epsilon (default:1e-5)
-save_mv save mean/variance(invstd) or not. set to 1 in training case (default:0)
-v cpu validation or not (default:1)
-kname print kernel name or not (default:1)
-prec_i input precision (default:fp16)
-prec_o output precision, set auto will be the same as input (default:auto)
-prec_sm output quant scale type, set auto will be the same as input. used when fquant=1 (default:auto)
-prec_sy output quant scale type, set auto will be the same as input. used when fquant=1 or 2 (default:auto)
-fadd fused-add, 0:no fused add, 1:preadd+store, 2:preadd only (default:0)
-fquant fused-quant, 0:no, 1:smooth-dynamic-quant, 2:dynamic-quant (default:0)
-warmup cold iter (default:5)
-repeat hot iter (default:20)
limitations
Note that fquant=2, fadd=2, prec_sm/prec_sy other than fp32 are not by default generated. Though our kernel template suppor this. (TBD: add some flag in generate.py) to generate those instance on demand. Beside, N>8192 case will by default using two-pass pipeline, and -fquant=1/2 are not supported yet. If need suport N>8192 and fused+residual+store, you can use this example together with 12_smoothquant, to construct layernorm+residual, and smoothquant, 2 kernels for this purpose.
# some case
# standard fp16 layernorm 2d, m=10. n=1024
./build/bin/tile_example_layernorm2d_fwd -m=10 -n=1024
# standard fp16 layernorm 2d, m=10. n=1024, fused-smooth-quant, output in int8
./build/bin/tile_example_layernorm2d_fwd -m=10 -n=1024 -prec_o=int8 -fquant=1
# standard fp16 layernorm 2d, m=10. n=1024, fused-smooth-quant+fused-add-store, output in int8
./build/bin/tile_example_layernorm2d_fwd -m=10 -n=1024 -prec_o=int8 -fquant=1 -fadd=1
