[PR #2963] feat(tv): make the D-pad focus indicator visible on Android TV #3031

New issue

Open

opened 2026-10-14 21:07:00 +00:00 by bsakaguchi · 0 comments

bsakaguchi commented

2026-10-14 21:07:00 +00:00

Owner

📋 Pull Request Information

Original PR: https://github.com/amnezia-vpn/amnezia-client/pull/2963
Author: @WkdXeqtr
Created: 8/9/2026
Status: 🔄 Open

Base: dev ← Head: feat/tv-focus-indicator

📝 Commits (3)

c929a1c feat(tv): make the focus indicator readable on Android TV
33f4ccb fix(tv): focus the connect button when the home page opens
94b9614 fix(tv): skip the outdated container icon in the focus chain

📊 Changes

23 files changed (+219 additions, -64 deletions)

View changed files

📝 client/ui/qml/Components/AdLabel.qml (+4 -5)
📝 client/ui/qml/Components/ConnectButton.qml (+3 -3)
📝 client/ui/qml/Components/ServersListView.qml (+4 -0)
📝 client/ui/qml/Controls2/BasicButtonType.qml (+7 -6)
📝 client/ui/qml/Controls2/CaptchaDialogType.qml (+0 -1)
📝 client/ui/qml/Controls2/CardType.qml (+8 -2)
📝 client/ui/qml/Controls2/CheckBoxType.qml (+6 -3)
📝 client/ui/qml/Controls2/DropDownType.qml (+6 -7)
➕ client/ui/qml/Controls2/FocusIndicatorType.qml (+36 -0)
📝 client/ui/qml/Controls2/HorizontalRadioButton.qml (+8 -2)
📝 client/ui/qml/Controls2/ImageButtonType.qml (+7 -7)
📝 client/ui/qml/Controls2/LabelWithButtonType.qml (+12 -7)
📝 client/ui/qml/Controls2/SwitcherType.qml (+23 -5)
📝 client/ui/qml/Controls2/TabButtonType.qml (+7 -4)
📝 client/ui/qml/Controls2/TabImageButtonType.qml (+4 -5)
📝 client/ui/qml/Controls2/TextAreaType.qml (+1 -1)
📝 client/ui/qml/Controls2/TextAreaWithFooterType.qml (+1 -1)
📝 client/ui/qml/Controls2/TextFieldWithHeaderType.qml (+1 -1)
📝 client/ui/qml/Controls2/VerticalRadioButton.qml (+14 -4)
📝 client/ui/qml/Modules/Style/AmneziaStyle.qml (+24 -0)

...and 3 more files

📄 Description

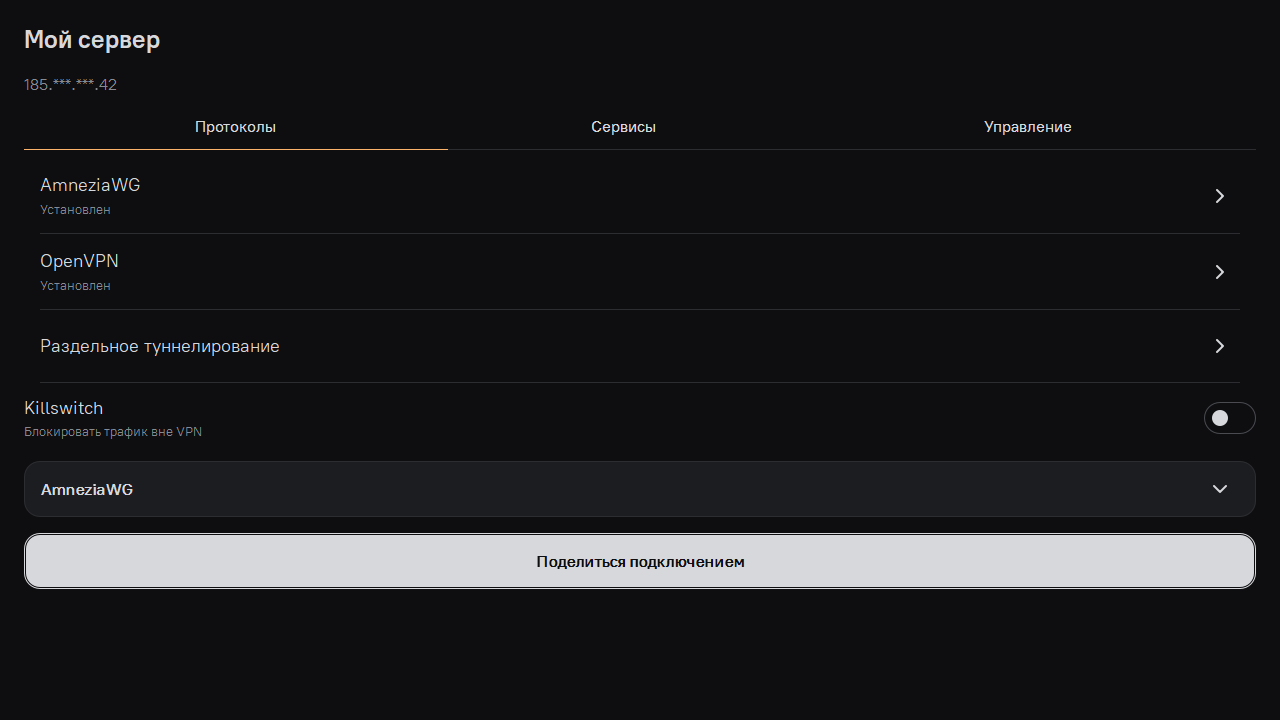

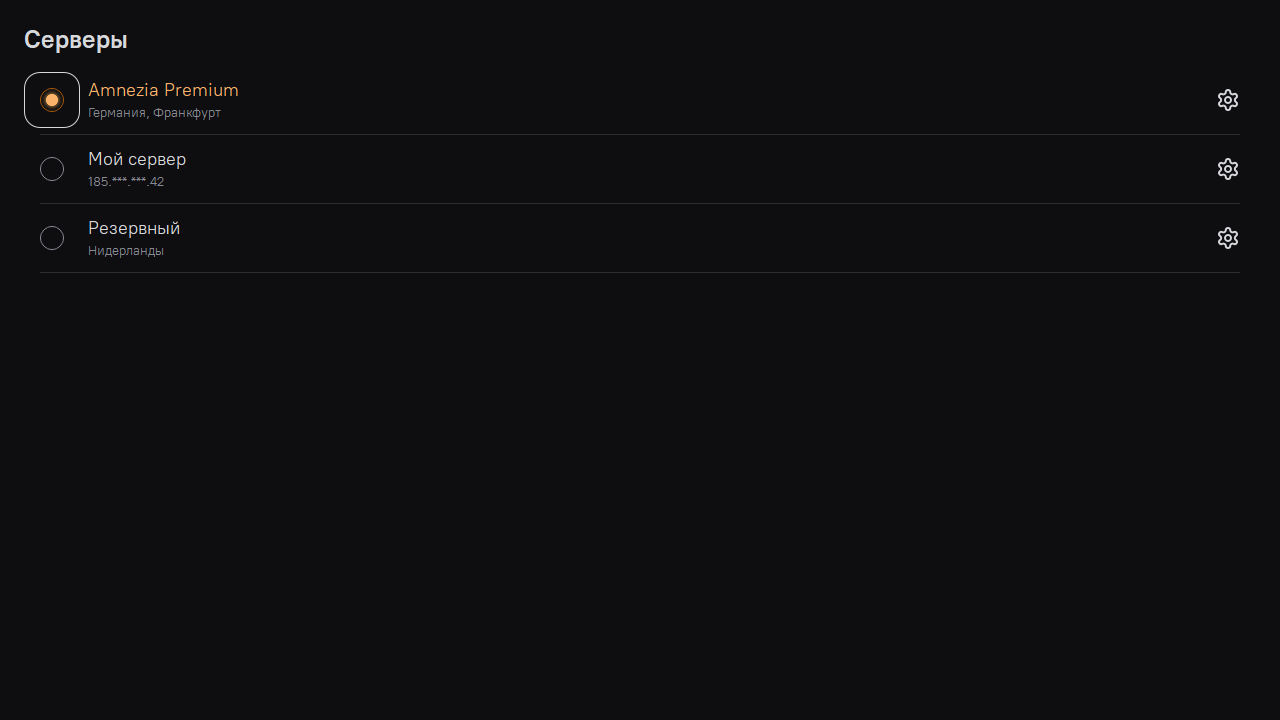

On Android TV the focus indicator is a 1px paleGray outline. On the light buttons that is the same colour as the button itself, so it is invisible, and on dark rows it is a hairline you cannot see from the couch. Settings rows are worse: a row with a chevron is not focusable itself (isFocusable in LabelWithButtonType), so the focus target is the 40x40 icon and nothing shows which row you are on.

#946 asked for exactly this and was closed once arrow key handling landed, but the visual side was never done. Related: #1282.

Changes:

new Controls2/FocusIndicatorType.qml and an AmneziaStyle.focus group holding the indicator colour, width, fill and padding

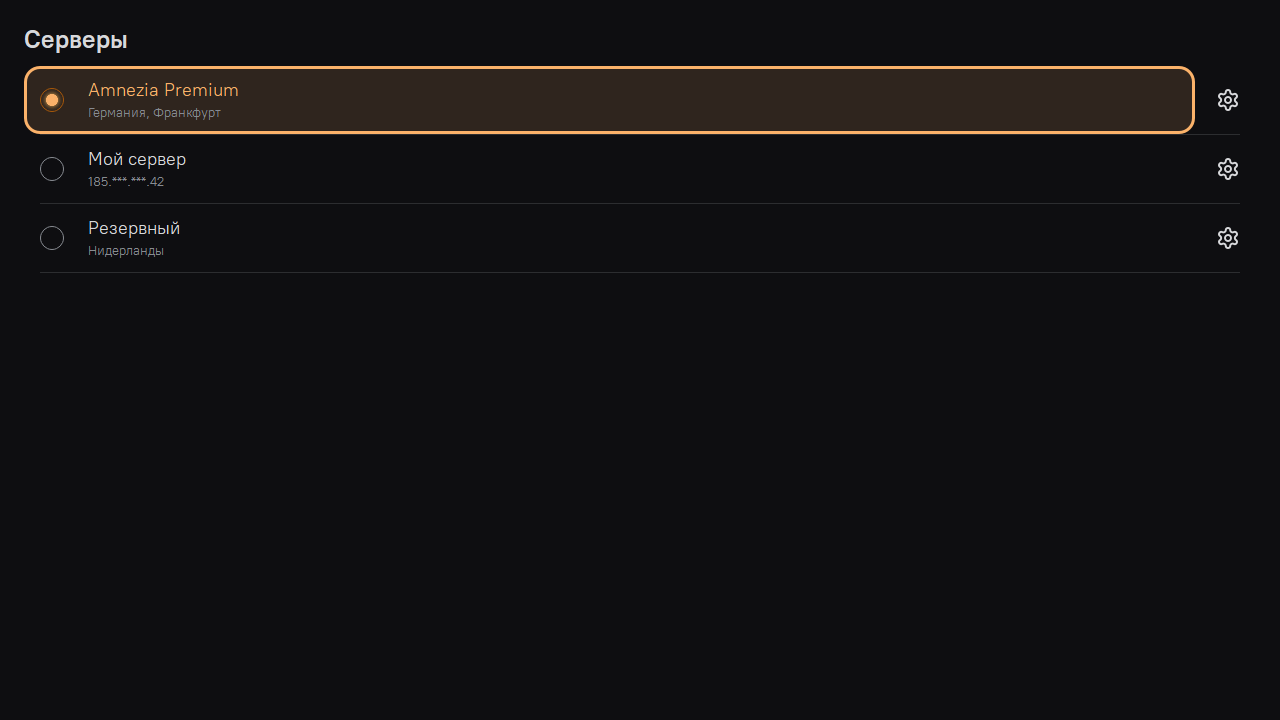

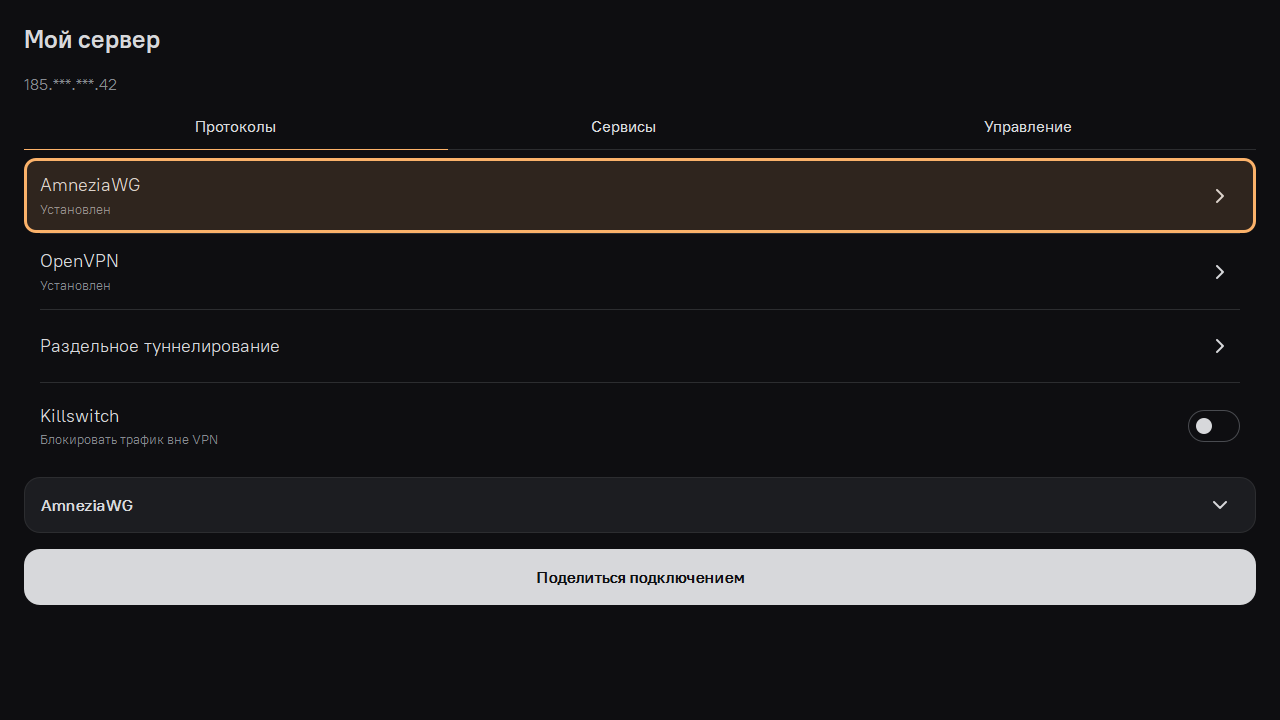

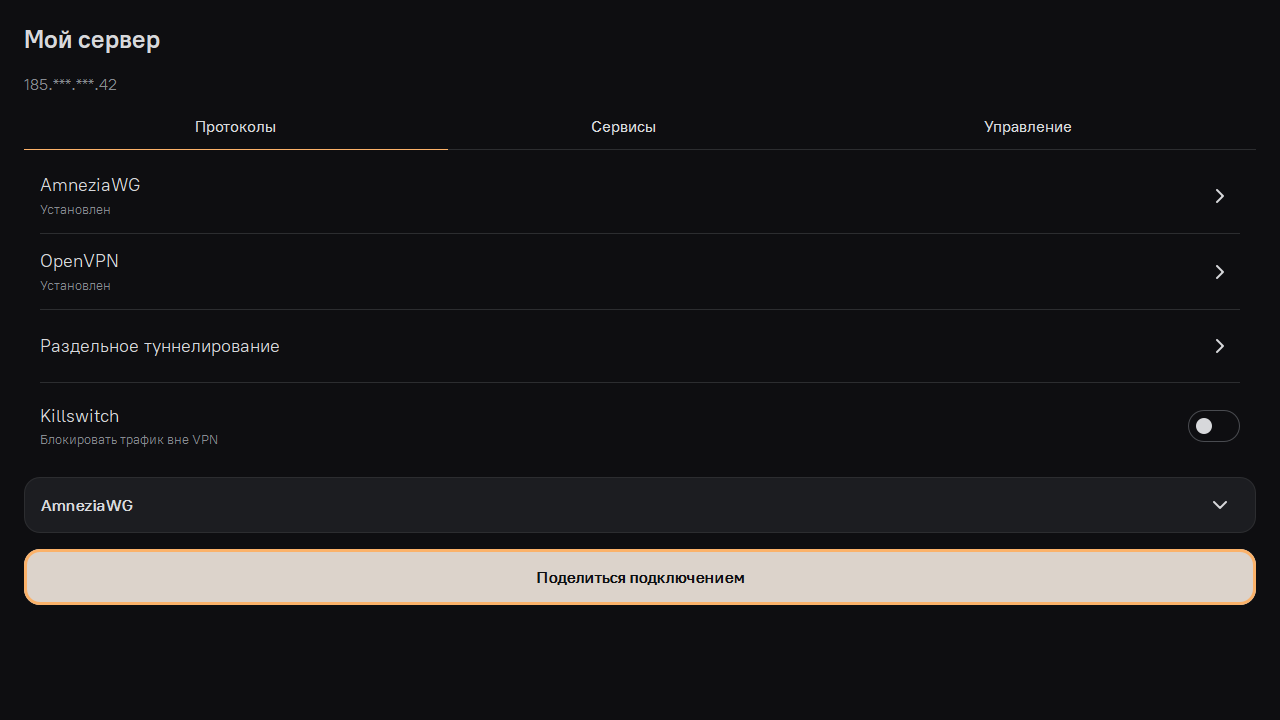

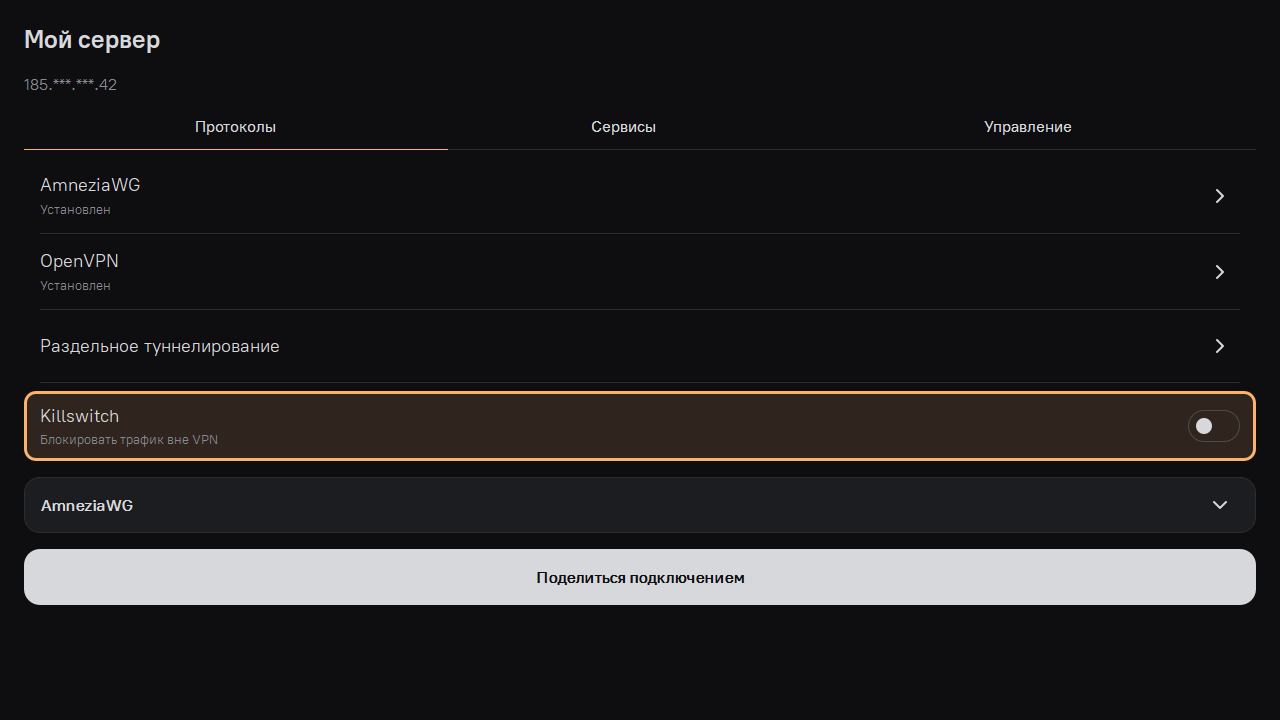

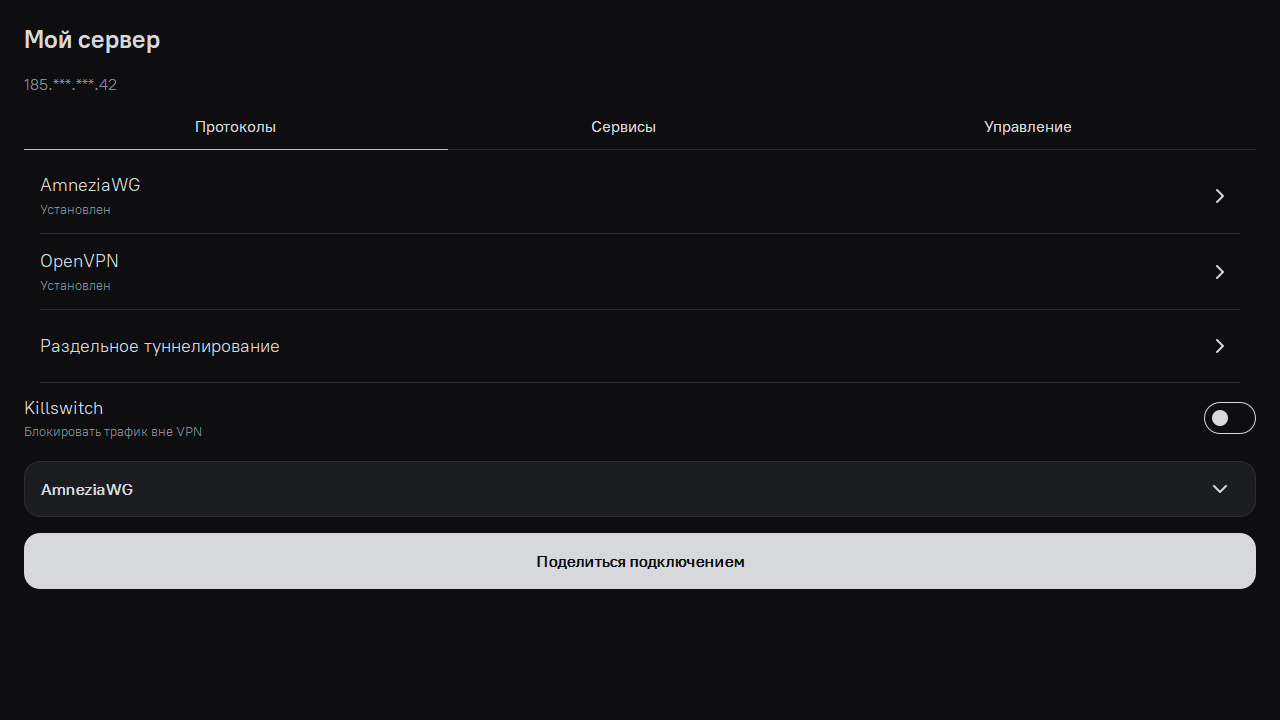

on a TV the indicator becomes a 3px goldenApricot outline with a faint fill of the same colour, and controls whose focus target is a small child of a wider row (settings rows, the killswitch, radio buttons) light up as a whole
SwitcherType also gets the padding the list rows already have, its label sits flush against the control edge and the outline would run across it

The focus chain is unchanged, Tab and the arrow keys visit the same items in the same order. TV is detected with the existing SettingsController.isOnTv(). Off a TV every control renders as before.

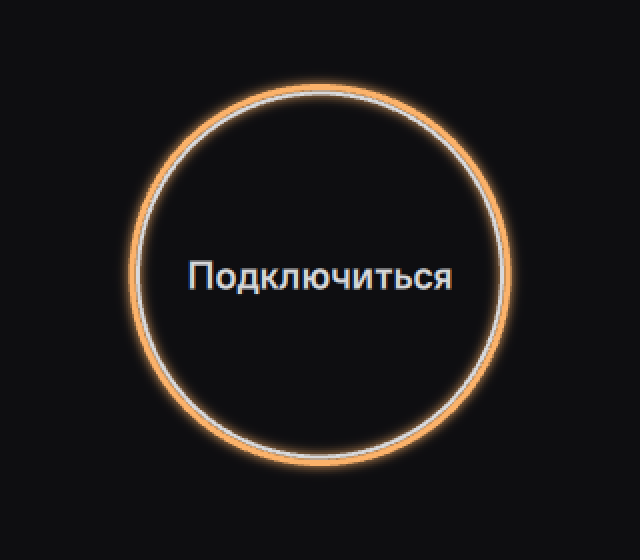

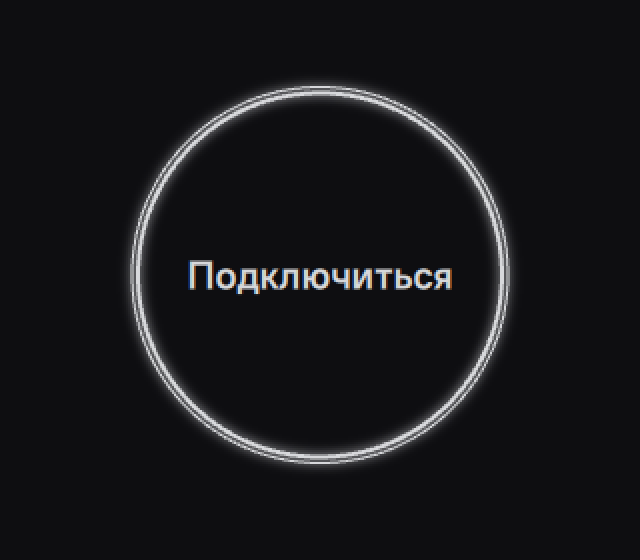

While testing this I noticed the app opens with nothing focused at all, so on a TV the first press of the remote only enters the focus chain and the connect button lights up on the second. Fixed here too: PageHome now starts with the focus on the connect button, the same way PageSetupWizardStart already does for TV.

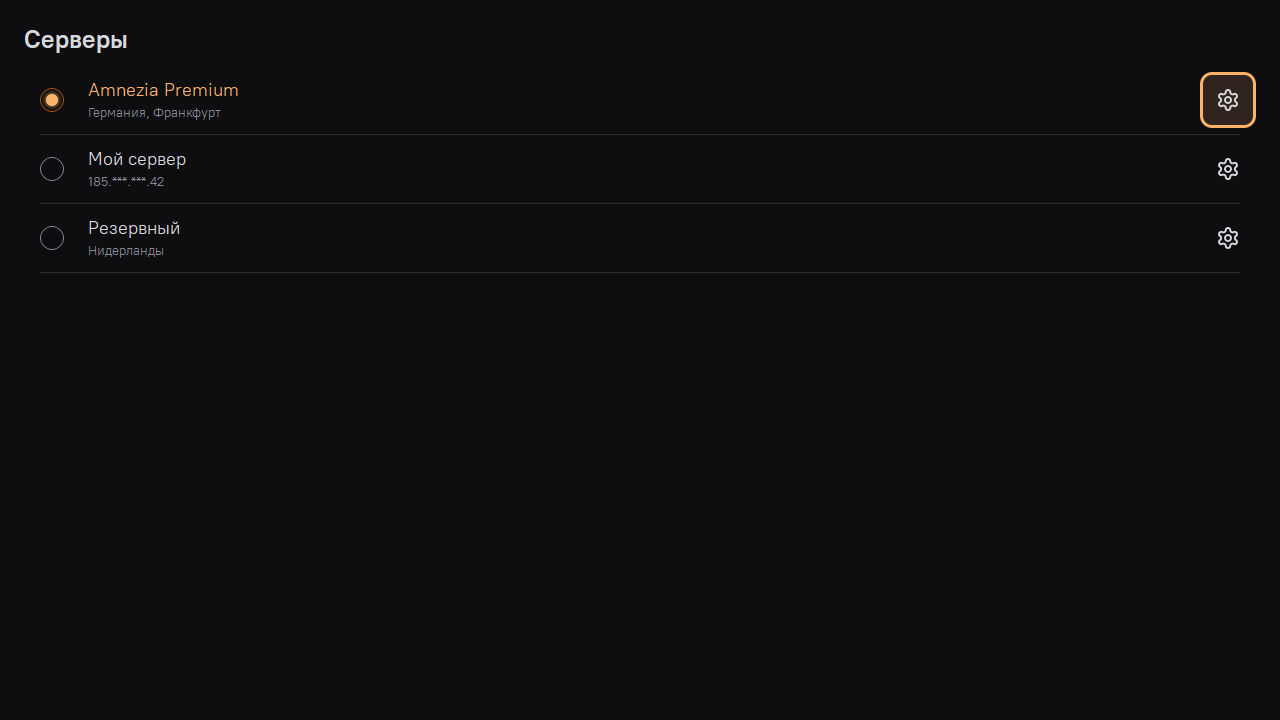

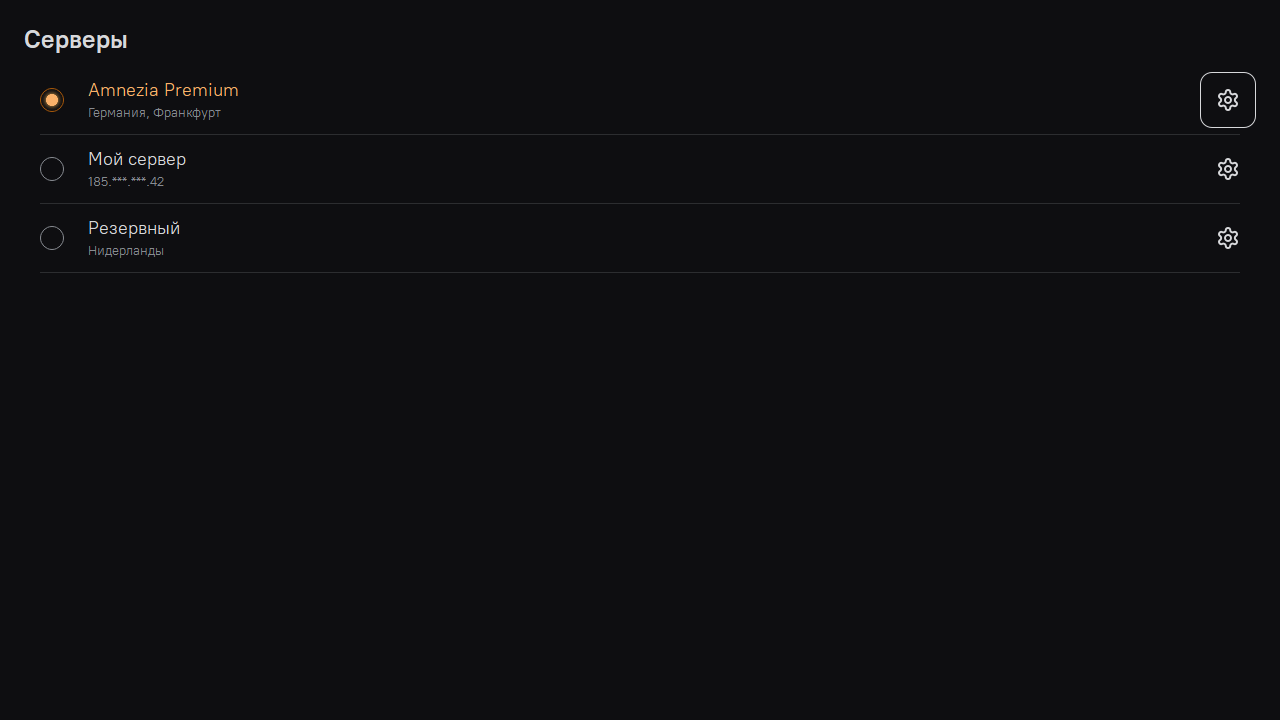

One more dead stop: the outdated container icon in a server row has no action, but ImageButtonType is focusable by default, so the D-pad stopped on it on the way to the settings button. It is skipped now. This one is not limited to a TV, it also removes the stop from keyboard navigation on desktop.

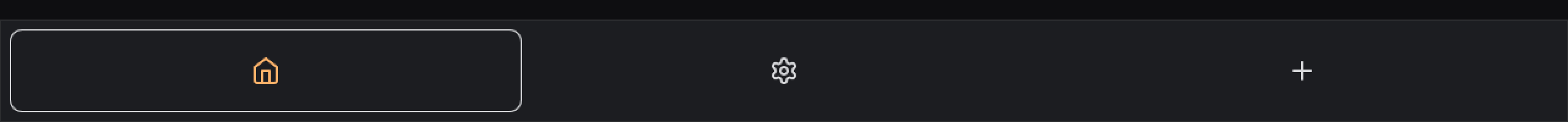

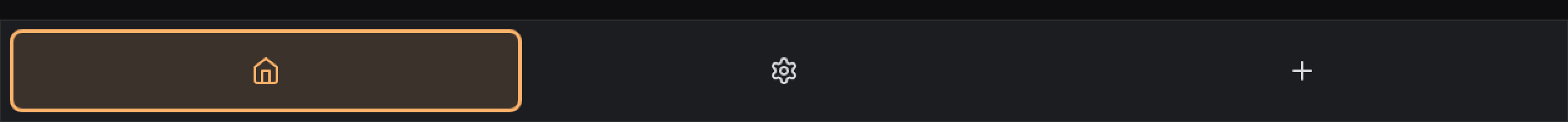

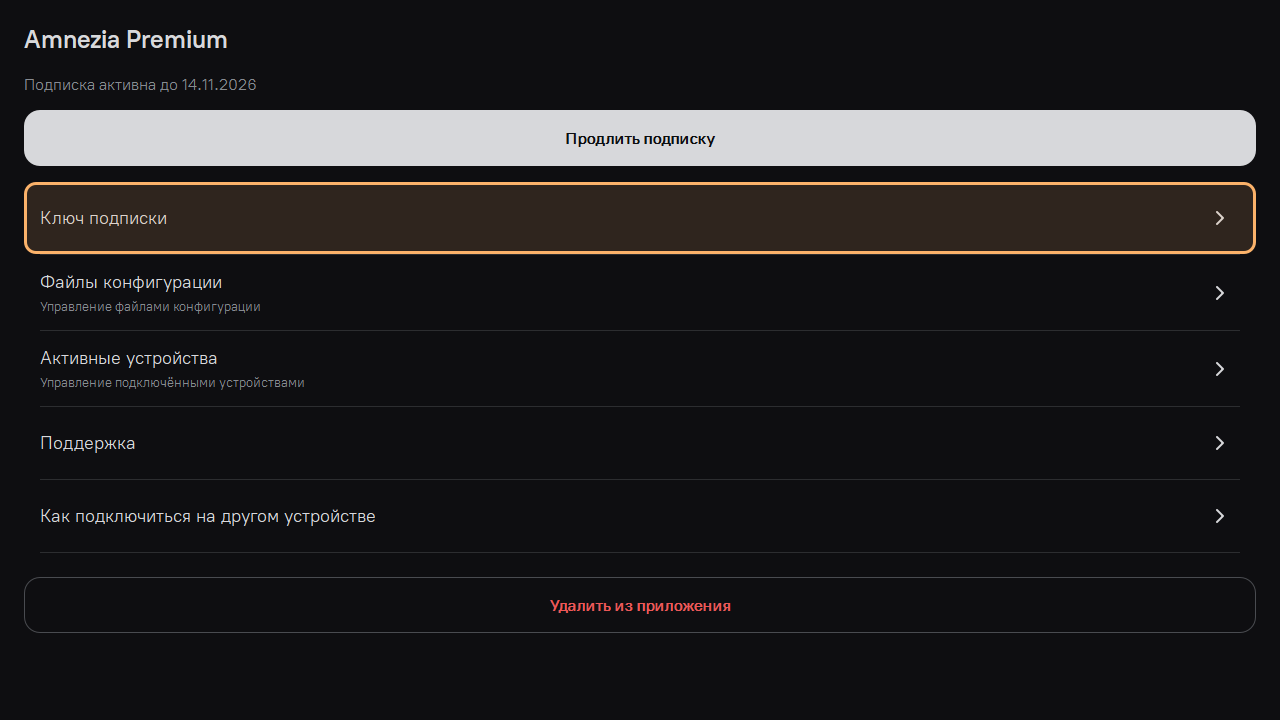

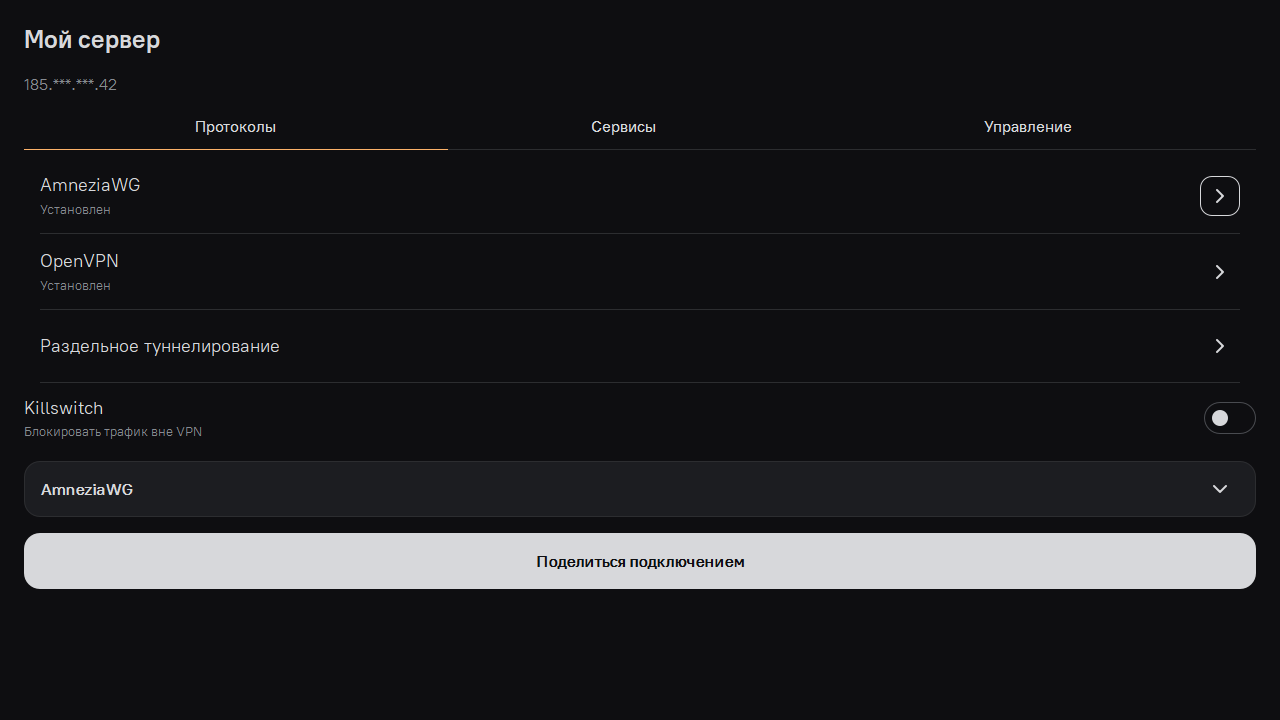

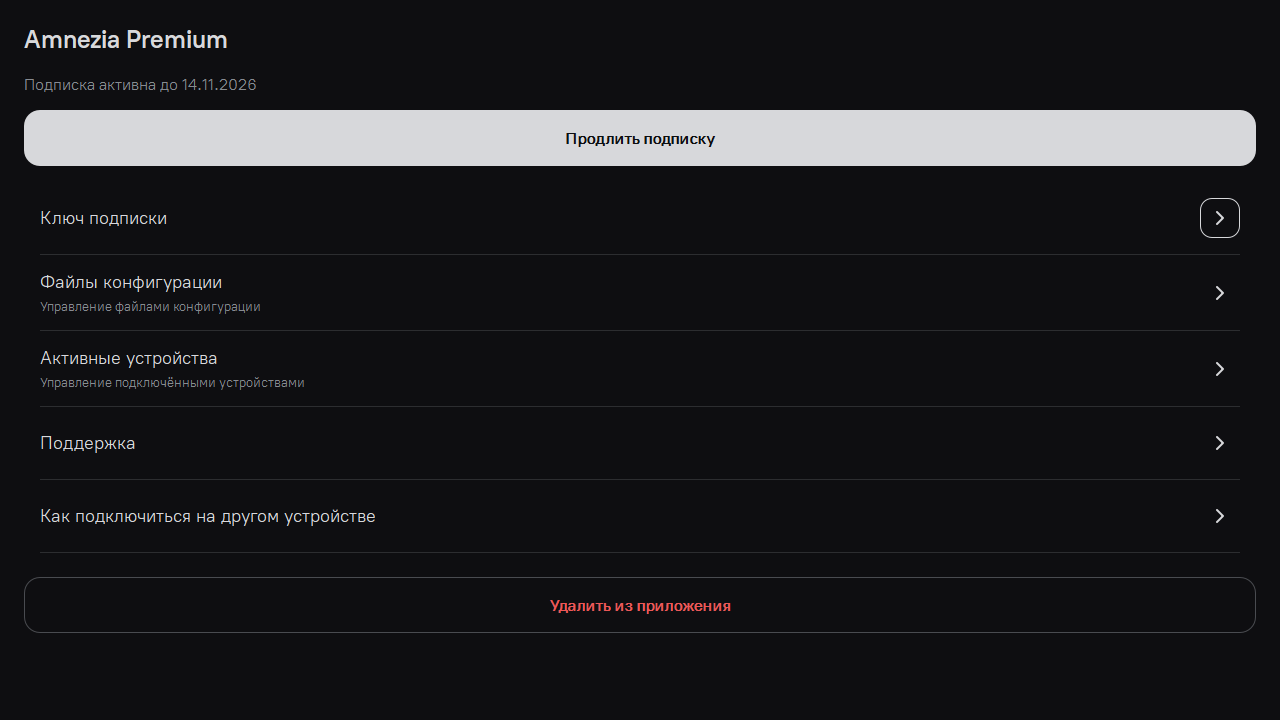

Before	After

_{🔄 This issue represents a GitHub Pull Request. It cannot be merged through Gitea due to API limitations.}
