Running MiniMax-M2.1 with Native Precision using SGLang and KT-Kernel
This tutorial demonstrates how to run MiniMax-M2.1 model inference using SGLang integrated with KT-Kernel. MiniMax-M2.1 provides native FP8 weights, enabling efficient GPU inference with reduced memory footprint while maintaining high accuracy.
Table of Contents
- Table of Contents
- Hardware Requirements
- Prerequisites
- Step 1: Download Model Weights
- Step 2: Launch Server with KT CLI
- Step 3: Send Inference Requests
- Performance
- Troubleshooting
- Advanced Use Case: Running Claude Code with MiniMax-M2.1 Local Backend
- Additional Resources
Hardware Requirements
Minimum Configuration:
- GPU: NVIDIA RTX 5090 32 GB (or equivalent with at least 32GB VRAM available)
- CPU: x86 CPU with AVX512 support (e.g., Intel Sapphire Rapids, AMD EPYC)
- RAM: At least 256GB system memory
- Storage: >220 GB for model weights (same weight dir for GPU and CPU)
Tested Configuration:
- GPU: 1/2 x NVIDIA GeForce RTX 5090 (32 GB)
- CPU: 2 x AMD EPYC 9355 32-Core Processor (128 threads)
- RAM: 1TB DDR5 5600MT/s ECC
- OS: Linux (Ubuntu 20.04+ recommended)
Prerequisites
Before starting, ensure you have:
-
SGLang installed
Note: Currently, please clone our custom SGLang repository:
git clone https://github.com/kvcache-ai/sglang.git cd sglang pip install -e "python[all]"You can follow SGLang integration steps
-
KT-Kernel installed
Please follow kt-kernel
After installation, verify the CLI is working:
kt version -
CUDA toolkit - CUDA 12.0+ recommended for FP8 support
-
Hugging Face CLI - For downloading models:
pip install -U huggingface-hub
Step 1: Download Model Weights
Download the official MiniMax-M2.1 weights.
-
huggingface: https://huggingface.co/MiniMaxAI/MiniMax-M2.1
hf download MiniMaxAI/MiniMax-M2.1 --local-dir /path/to/minimax-m2.1
Step 2: Launch Server with KT CLI
The simplest way to start the MiniMax-M2.1 server is using the kt CLI:
kt run m2.1
The CLI will automatically detect your hardware configuration and apply optimal parameters for your system.
Advanced Options
For custom configurations, you can specify additional parameters:
# Use specific number of GPUs (tensor parallel)
kt run m2.1 --tensor-parallel-size 2
# Custom CPU threads and NUMA configuration
kt run m2.1 --cpu-threads 64 --numa-nodes 2
Dry Run
To preview the command without executing:
kt run m2.1 --dry-run
See KT-Kernel Parameters for detailed parameter tuning guidelines.
Key Parameters
| Parameter | Description |
|---|---|
--kt-method FP8 |
Enable FP8 inference mode for MiniMax-M2.1 native FP8 weights. |
--kt-cpuinfer |
Number of CPU inference threads. Set to physical CPU cores (not hyperthreads). |
--kt-threadpool-count |
Number of thread pools. Set to NUMA node count. |
--kt-num-gpu-experts |
Number of experts kept on GPU for decoding. |
--chunked-prefill-size |
Maximum tokens per prefill batch. |
--max-total-tokens |
Maximum total tokens in KV cache. |
--kt-gpu-prefill-token-threshold |
Token threshold for layerwise prefill strategy. |
Step 3: Send Inference Requests
Once the server is running (default: http://localhost:30000), you can interact with the model in several ways:
Option A: Interactive Chat with KT CLI
The easiest way to chat with the model:
kt chat
This opens an interactive terminal chat session. Type your messages and press Enter to send. Use Ctrl+C to exit.
Option B: OpenAI-Compatible API
The server exposes an OpenAI-compatible API at http://localhost:30000/v1.
curl example (streaming):
curl http://localhost:30000/v1/chat/completions \
-H "Content-Type: application/json" \
-d '{
"model": "MiniMax-M2.1",
"messages": [{"role": "user", "content": "Hello!"}],
"stream": true
}'
Performance
Throughput (tokens/s)
The following benchmarks were measured with single concurrency (Prefill tps / Decode tps):
| GPU | CPU | PCIe | 2048 tokens | 8192 tokens | 32768 tokens |
|---|---|---|---|---|---|
| 1 x RTX 4090 (48 GB) | 2 x Intel Xeon Platinum 8488C | PCIe 4.0 | 129 / 21.8 | 669 / 20.9 | 1385 / 18.5 |
| 2 x RTX 4090 (48 GB) | 2 x Intel Xeon Platinum 8488C | PCIe 4.0 | 139 / 23.6 | 1013 / 23.3 | 2269 / 21.6 |
| 1 x RTX 5090 (32 GB) | 2 x AMD EPYC 9355 | PCIe 5.0 | 408 / 32.1 | 1196 / 31.4 | 2540 / 27.6 |
| 2 x RTX 5090 (32 GB) | 2 x AMD EPYC 9355 | PCIe 5.0 | 414 / 35.9 | 1847 / 35.5 | 4007 / 33.1 |

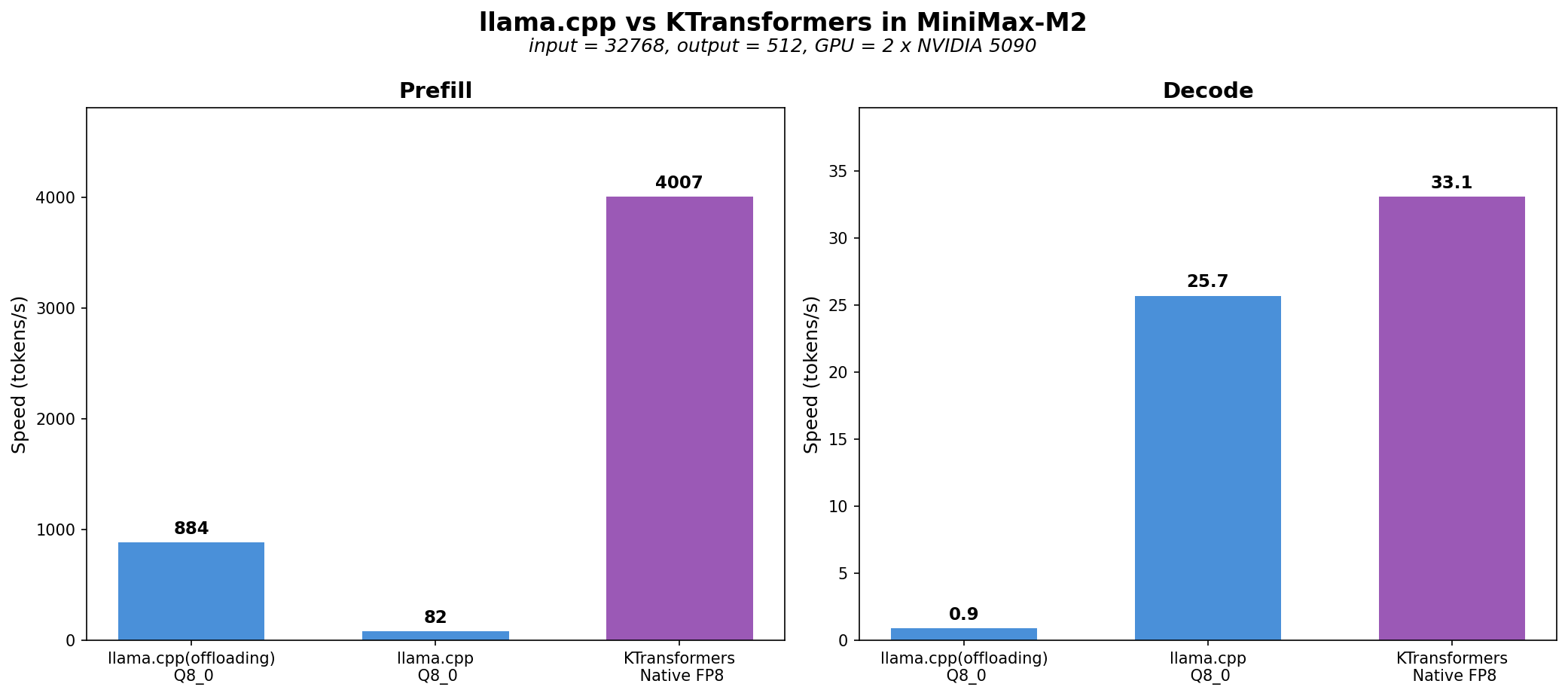

Comparison with llama.cpp
We benchmarked KT-Kernel + Sglang against llama.cpp to demonstrate the performance advantages of our CPU-GPU heterogeneous inference approach.
-
Weight formats: KT-Kernel uses native unquantized FP8 weights from MiniMax-M2, while llama.cpp only supports quantized weights, so we used Q8_0 quantization for the llama.cpp benchmarks.
-
Test environment: 2 x RTX 5090 (32 GB) with AMD EPYC 9355 CPUs, input tokens=32768, output tokens=512. We made our best effort to optimize llama.cpp performance, but we could not achieve optimal prefill and decode with a single command, so we used separate configurations for prefill and decode measurements.
As shown in the chart, KT-Kernel achieves up to >4.5x prefill and 30% faster decode compared to llama.cpp on the same hardware.
Troubleshooting
OOM (Out of Memory) Issues
Layerwise prefill requires extra VRAM (~3.6GB + incremental cost with prefill length). If you encounter OOM, adjust these parameters when launching the server:
| Parameter | VRAM Impact |
|---|---|
--kt-num-gpu-experts |
Reduces expert weight VRAM usage |
--chunked-prefill-size |
Reduces prefill extra VRAM allocation |
--max-total-tokens |
Reduces KV cache VRAM usage |
Tip: Test with an input of length chunked-prefill-size to verify your configuration won't OOM during prefill.
Advanced Use Case: Running Claude Code with MiniMax-M2.1 Local Backend
kt run m2.1 --tool-call-parser minimax-m2 --reasoning-parser minimax-append-think
With the above command, you can use claude-code-router to connect MiniMax-M2.1 as a local backend for Claude Code.
